Description
Highlights At a Glance
·With LCD display & key-operated on-site parameter setting
·Excellent measurement accuracy, fast response speed
·Supports customization of various thread speciF cations
·Wide pressure range options
About US
Prognosense is a high technology enterprise which was located in Huzhou city, Zhejiang Province, China. Nearly Ningbo Port and Shanghai port, it's very convenient for transportation. The company's owner is a German PhD with more than 10 years sensor industry experiences. We focus on R&D, manufacturing and global supply of high-performance sensors for industrial automation, mining industry, medical industry and hydrogen energy industry...... Committed to German-quality standards, we provide high precision products and stability &reliability service to worldwide customers. Our proprietary technologies, strict quality control and customized solutions make us a trusted partner for global customers.

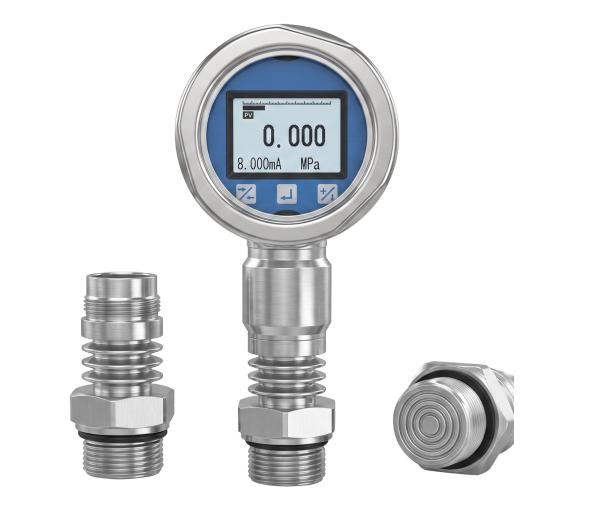

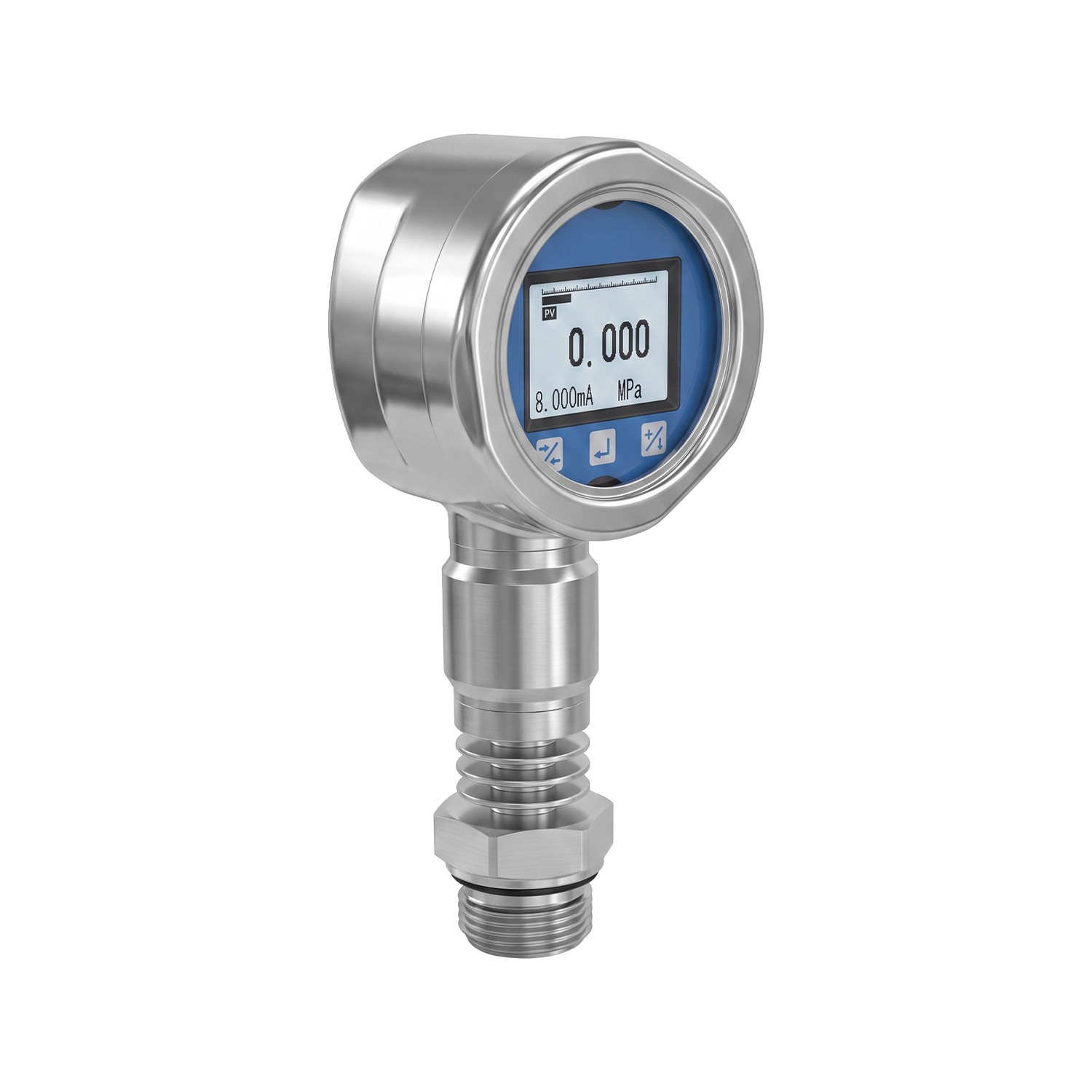

Hygienic Pressure Sensor / Transmitter
Pressure Type
Gauge Pressure，Absolute Pressure
Pressure Range
-100kPa~10kPa....40mPa
Output Range
4~20mA,0~5V,0~10V,4~20mA+HART Protocol
Accuracy
0.1%FS, 0.25%FS, 0.5%FS
Operating Temperature
-20~150℃
Thread Connection
M27x2(with three cooling Fins)
Typical Application
Pharmaceutical, food, chemical and other fields Liquid injection, slurry conveying, cooling water and gas supply pressure monitoring，Process gas, cooling water, vacuum pressure detection, hydraulics and pneumatics
