Description

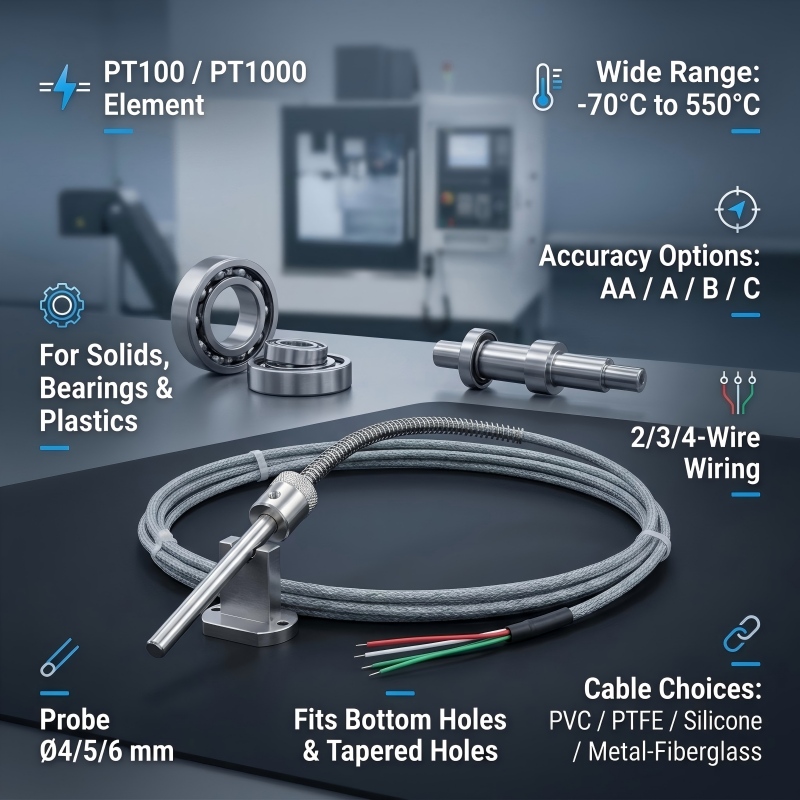

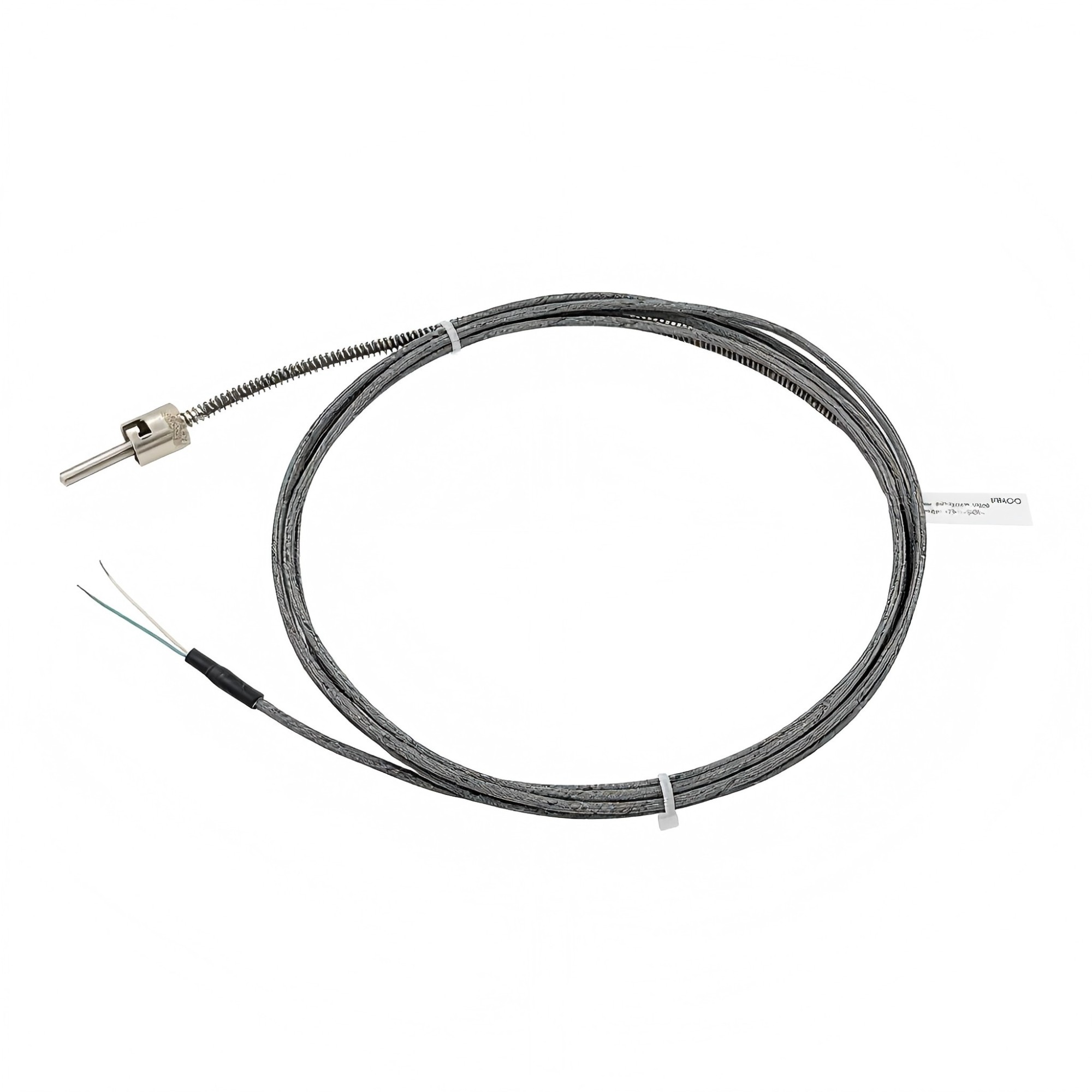

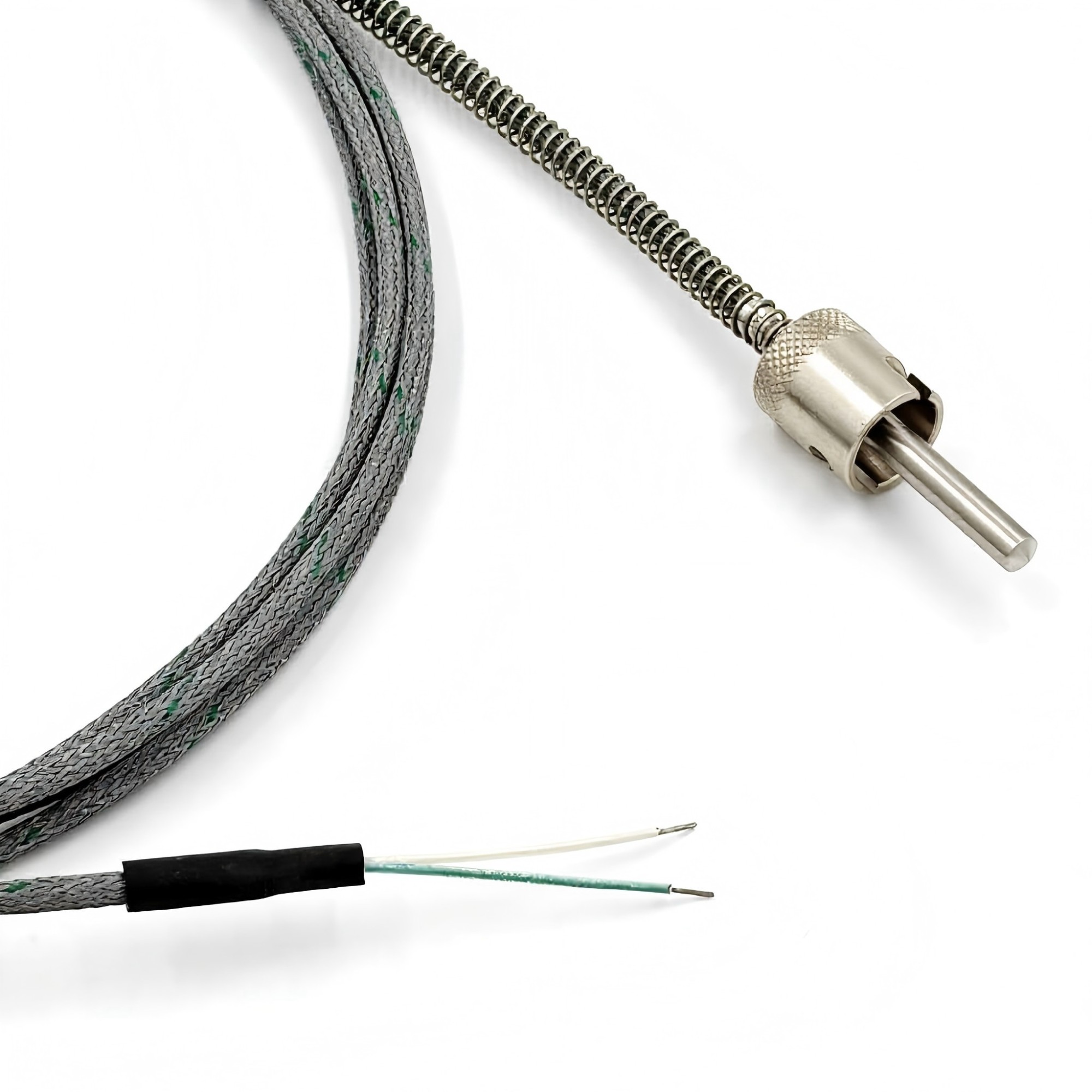

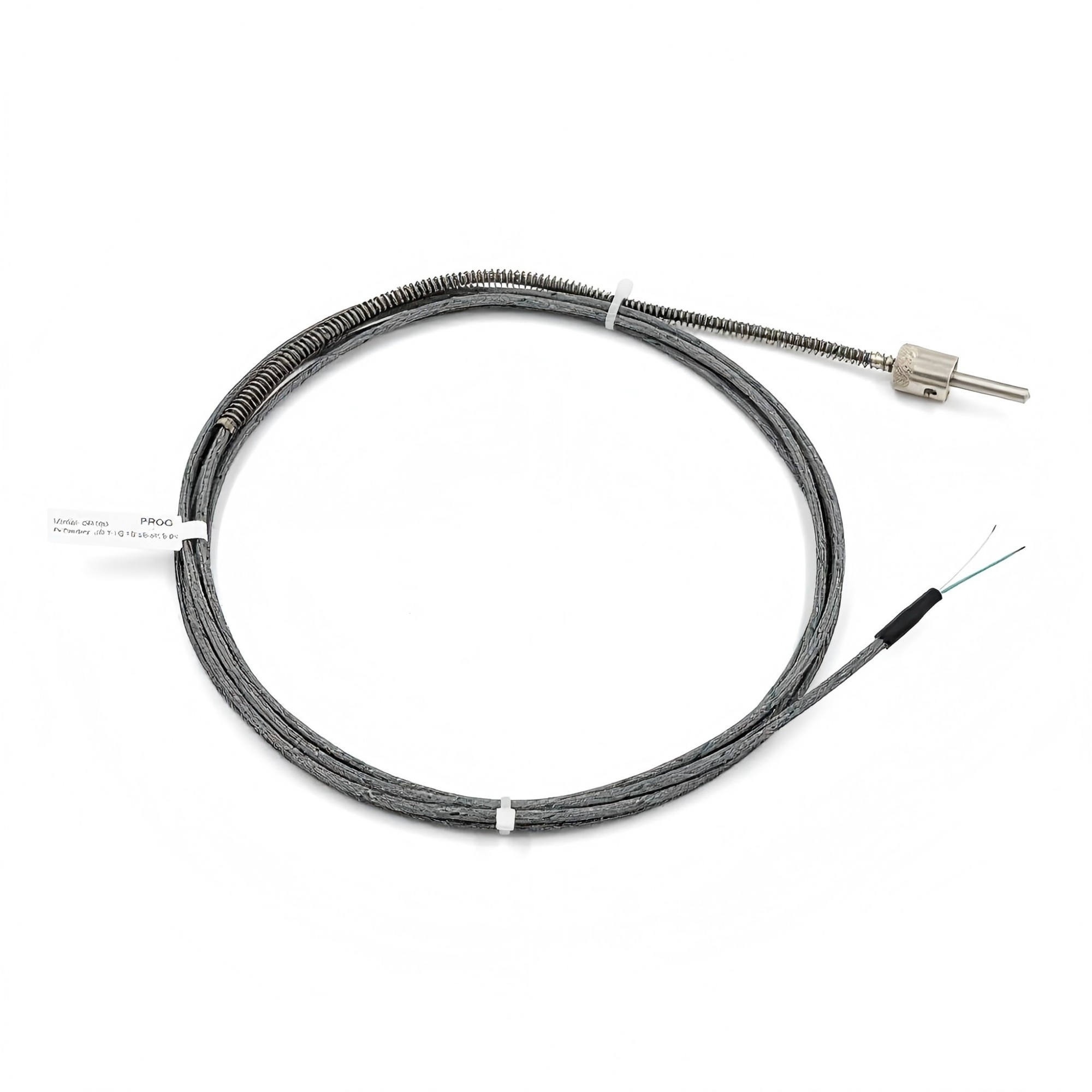

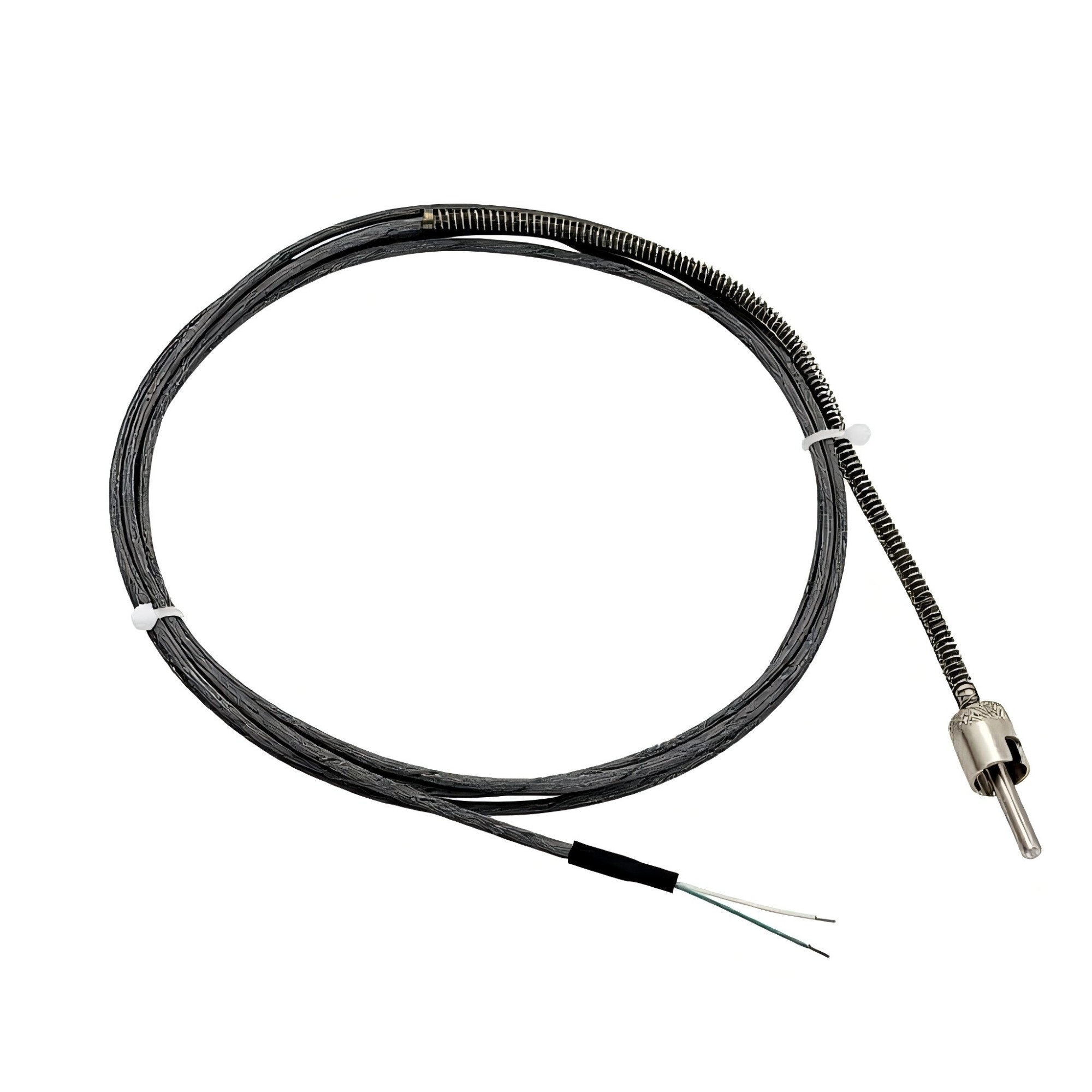

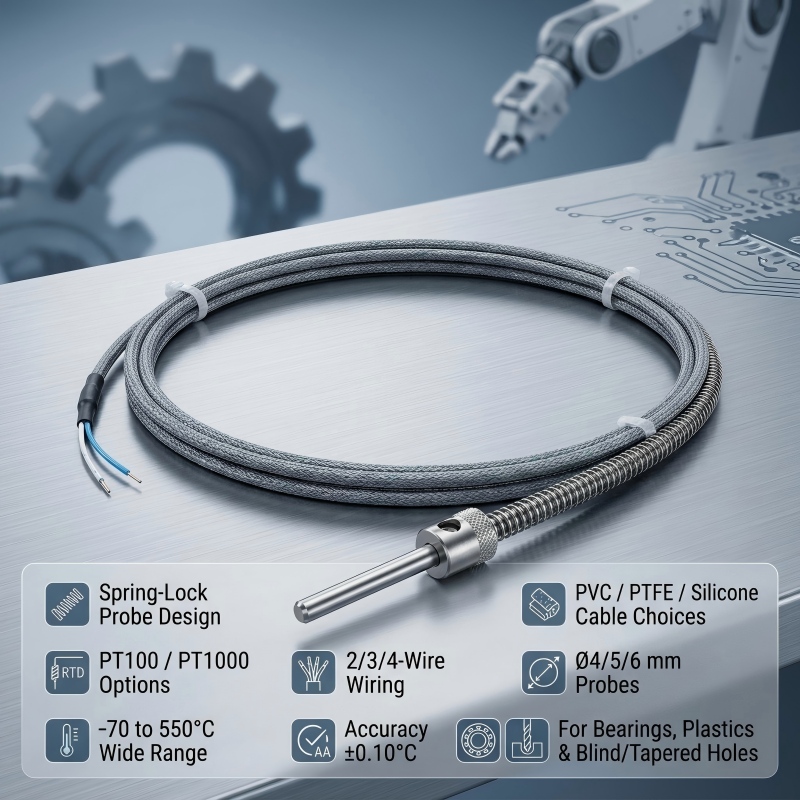

Adjustable Compression Spring
Features a specialized spring-loaded design that allows for flexible adjustment of the insertion length, ensuring constant contact pressure for accurate measurement.
Item Number
PROG-SR103-1
Temperature Sensing Element
PT100 | PT1000 Platinum Resistance
Operating Temperature
-70℃~550℃
Accuracy Class
AA:±0.10℃(0℃~150℃)
A:+0.15℃(-50℃~300℃)
B:±0.3℃(-70℃~500℃)
C:+0.6℃(-70℃~550℃)
Insulation Resistance
>100MΩ 100VDC(20℃ standard environment)
Probe Diameter
Φ4/Φ5/Φ6....
Connecting Way
2 Wire / 3 Wire / 4Wire Available
Wire Material
PVC / PTFE / Silicone / Metal-fiberglass Wire.....
Application
For Solid/Bearings/Plastic Industry/Bottom Holes/Tapered bore holes measurement;
